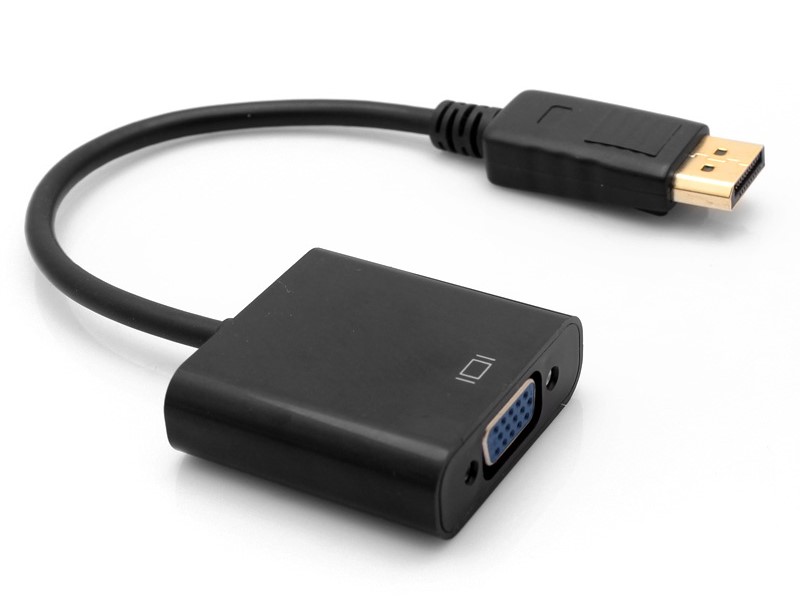

DISPLAYPORT TO VGA CABLE ADAPTER
DP TO VGA CABLE ADAPTER
Features:
1. Display resolution up to: 1920x1200(WUXGA-R)‚ 60Hz‚ 8bpc: 154MHz;
1920x1080P‚ 60Hz‚ 10bpc: 144MHz
2. DisplayPort ver1.1: DP two lanes or DP one lane;
3. RGB analog video(VGA port) output: Configured for 700mV voltage swing;
4. Automatic sink detection and stand by mode;
5. Spread spectrum (de-spreading) for EMI reduction;
6. EDID Pre-fetch (VGA EDID Conversion);
7. Sink detection based on DDC return;
8. Measured power: Active 1.4W‚ Standby 100mW;
9. Power supply: +3.3V (Form DP);
10.Compatible With all displayport interface.
Specifications:
. Connecting your Apple, Dell, Lenovo Notebook to HDTV and Projector for large screen viewing.
. DisplayPort 1.1a compliant receiver offering 1.62 and 2.7Gbps over 4 lanes.
. Support full DisplayPort link training.
. Video resolution up 1920x1200x60HZ.
. ESD protect: Human Body Mode at 8KV, Machine Mode at 400V, and charged Device Mode at 2KV.
. PC: VGA, SVGA, XGA, SXGA, UXGA and WUXGA.
