| Specification | ||

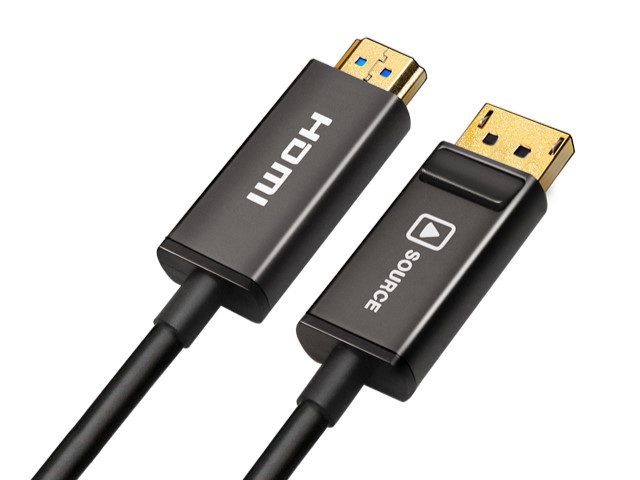

| Product Name: | AOC Active Optical Cable DisplayPort DP1.2 To HDMI Cable, lenght up to 50M | |
| 4K 60Hz (4:4:4) 18G 5M 10M 15M 20M 30M 50M | ||
| Wire Spec.: | OM3 fiber*4 + copper wire*7+Kevlar tensile | |
| OD: | 4.8mm | |
| Connector: | Terminal gold plated, Shell gold plated | |
| Housing: | Zinc Alloy (logo can be customized for qty>=200pcs) | |
| Jacket: | CL2, FT4 Flame retardant black PVC Jacket | |
| OD: | 4.8mm | |
| Drive Chip: | Silicon Line (Germany) | |
| VCSEL: | II VI (America) | |
| Power Consumption: | 250mW (Max.) | |
| Extra Power Supply: | No need | |
| Resolution: | 4K 60Hz (4:4:4), 1080P 60Hz | |
| Band Width: | 18Gbps | |
| Length Available: | Up to 50M | |
| Feature: | No signal loss, EMI free | |
| Ultra slim, easy for installation and engineer layout | ||
| Light speed transmission, low attenuation, no delay | ||
| Compatible with: | PC, Laptop, UHD TV, Projector, BlueRay Player | |
| WorkStation, PlayStation, X Box, Monitor etc | ||
| Application: | Security Protection, Home/Commercial Theater, | |
| Hotel, Education Fields, Outdoor Advertising, | ||
| Other Engineering Installation | ||
| Package: | Neutral box | |
