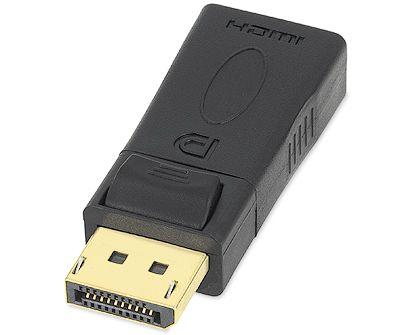

DisplayPort (Male) to HDMI (Female) Converter
This adapter can easily output HDMI signals at 1080p (2.5Gbps per lane/250Mhz) and is a simple a solution for converting DisplayPort signals to HDMI v1.3. The adapter also supports HDCP version 1.2 for HDMI and DPCP (DisplayPort Content Protection) for all your protected media viewing. Please note this is a passive adapter and required HDMI-compliant DisplayPort output for proper functioning. Check your manual or look for the D++ icon to know for sure. This adaptor is not bi-directional, and does not convert HDMI to DisplayPort.
Technical Information
The DisplayPort adapter supports 1, 2, or 4 data pairs in a Main Link that also carries clock and optional audio signals, each with a symbol rate of 1.62 Gbps or 2.7 Gbps. The video signal path supports from 6 to 16 bits per colour channel. A bi-directional auxiliary channel (at a constant 1 Mbps) carries management and device control data for the Main Link. This Display Port adapter is rated for a resolution of 1080p resolution at 60Hz over a distance of 2 meters.
Product Summary:
• Product No.: C-DP-HDMI-MF-001
• Connector A: DisplayPort ver 1.1 (Male)
• Connector B: HDMI (Female)
• Colour: Black with Nickle Silver Connectors
• Packaging: PE Bag
• Converter Type: DisplayPort (Male) to HDMI (Female) Adaptor
Product Specifications:
• Uni-directional, the DisplayPort must be the source device, not the output device!
• Male DisplayPort Connector (version 1.1a) to Female HDMI v1.3 connector
• Nickle Silver Plated Connectors for optimal signal transer
• 10.8 Gbps Data tranfer rate
• Supports HDMI resolutions such as 576i, 576p, 720p, 1080i, 1080p plus many others.
• Support for HDCP (ver. 1.2) and DPCP (Display Port Content Protection)
• Perfect for converting a Display Port Device for use with a HDMI Screen
• DisplayPort device with the ability to convert HDMI, DVI or VGA is required
• Colour: Black with Silver Connectors
DisplayPort Compatibility Note
DisplayPort (DP) cables and adapters are not bi-directional, and require a DP output which is DP++ (Dual Mode) compatible. When a DisplayPort to HDMI adapter/cable is connected to a DP++ (Dual-Mode) output, the output device senses the presence of the adaptor/cable and sends HDMI signals over the DisplayPort connector rather than DisplayPort signals. No signal conversion is performed by the adapter/cable. HDMI signals are merely passed through.
