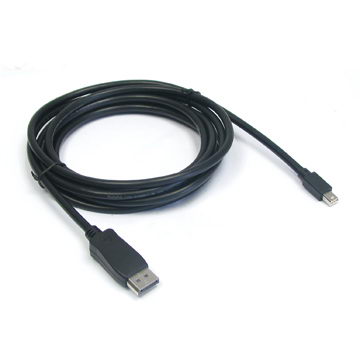

Mini DisplayPort (Male) to DisplayPort (Male) Cable
Compatible with Apple Thunderbolt or Mini-DisplayPort sockets - Bridge the gap between Mini-DisplayPort and DisplayPort in a single cable!
It's also fully bi-directional, so if you have one of those rare displays that feature a Mini-DisplayPort input, you can still run it from a device with a full sized output.
Technical Information
The DisplayPort connector supports 1, 2, or 4 data pairs in a Main Link that also carries clock and optional audio signals, each with a symbol rate of 1.62 Gbps or 2.7 Gbps. It is not always nessarsary for all the links to be functioning, for example, a 720p TV screen would only need to use one of the data pairs, not 4. The video signal path supports from 6 to 16 bits per colour channel. A bi-directional auxiliary channel (at a constant 1 Mbps) carries management and device control data for the Main Link.
Product Summary:
• Product No.: MDP-DP-MM-001
• Connector A: Mini DisplayPort ver 1.1 (Male)
• Connector B: DisplayPort ver 1.1 (Male)
• Colour: Black with Nickel Plated Connectors
• Packaging: Poly Bag
• Mini DisplayPort (Male) to DisplayPort (Male) Cable
Product Specifications
• Male Mini-DisplayPort Connector to Male DisplayPort connector
• Perfect for converting a Mini Display Port Device for use with a DisplayPort Screen
• Fully Bi-Directional - Convert Up or Down
• Nickle Plated Connectors for optimal signal transfer
• 7.1 HD audio formats such True HD and DTS HD are fully supported
• 10.8 Gbps Data tranfer rate
• Full Support for HDCP ver. 1.2 and DPCP (Display Port Content Protection)
• Colour: Black with Nickell plated Connectors
