Features:

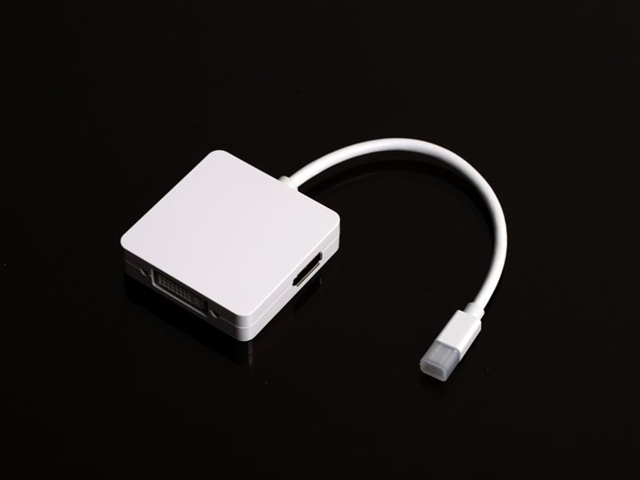

Plug: Mini Displayport male
Socket: HDMI Female+ DVI Female + Displayport Female ports.
Support Mini DisplayPort 1.1a input and DVI/HDMI/DisplayPort output.
Support DisplayPort highest video resolution 1920*1200.
Support HDMI/DVI highest video resolution 1920*1080p
Support HDMI/DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
Support HDMI/DVI 12bit per channel ( 36bit all channel ) deep color

Input Video Signal5 Volts p-p (TTL).
HDMI/DVI Maximum Single Link Range
DisplayPort Maximum Single Link Range
HDMI/DVI Video Amplifier Bandwidth2.25Gbps/225MHz
DisplayPort Video Amplifier Bandwidth2.7Gbps/270MHz
Input Interface Mini DisplayPort Male 20pin

Output Interface HDMI Female 19Pin and DVI Female (24+5) and DisplayPort 20Pin
HDMI/DVI Resolution480i, 480p, 576i, 576p, 720p, 1080i, 1080p
HDMI/DVI Resolution1280*1024, 1360*768, 1920*1080, 1920*1200
Operating Temperature0 to +70
Operating Humidity10% to 85 % RH ( Non Condensing )
