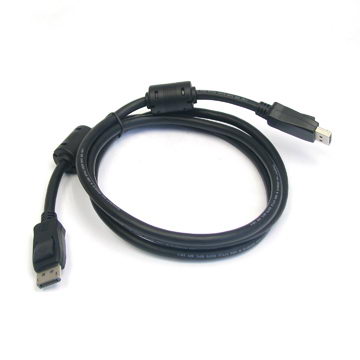

DisplayPort Male to DisplayPort Male Cable
Technical Specifications
The DisplayPort connector supports 1, 2, or 4 data pairs in a Main Link that also carries clock and optional audio signals, each with a symbol rate of 1.62 Gbps or 2.7 Gbps. The video signal path supports from 6 to 16 bits per colour channel. A bi-directional auxiliary channel (at a constant 1 Mbps) carries management and device control data for the Main Link. DisplayPort currently supports a maximum of 8.64 Gbps over a distance of 2 meters.
While all DisplayPort cables are fully compatible with all DisplayPort devices, not all devices output the same types of data, so check your manuals to ensure your equipment will speak the same language and do what you need them to.
Product Summary:
• Product No.: DP-DP-MM-001
• Connector A: DisplayPort ver 1.1 (Male)
• Connector B: DisplayPort ver 1.1 (Male)
• Colour: Black with Nickel Plated Connectors
• Packaging: Poly Bag
• DisplayPort (Male) to DisplayPort (Male) Cable
Product Specifications:
• Male Display Port Connector to Male Display Port Connector (version 1.1a)
• Nickle Plated Connectors for optimal signal transfer
• 10.8 Gbps Data tranfer rate
• Supports most signals such as 576i, 576p, 720p, 1080i, 1080p, 1440p & 1600p plus many others.
• Full support for DPCP (Display Port Content Protection)
• Perfect for running a Display Port Device with a Display Port Screen
• Supports 8 Channel Audio
• Colour: Black with Silver Connectors
